Unipulse Weighing Measurement

Standard, control function, PLC-networked, and application-specific weighing indicators to read, control, and automate weighing across your process. Each unit is quoted individually for your application.

Catalog

4 Weighing Indicator Types

Choose the indicator type based on the scale, the process automation you need, and how the equipment connects to your control system.

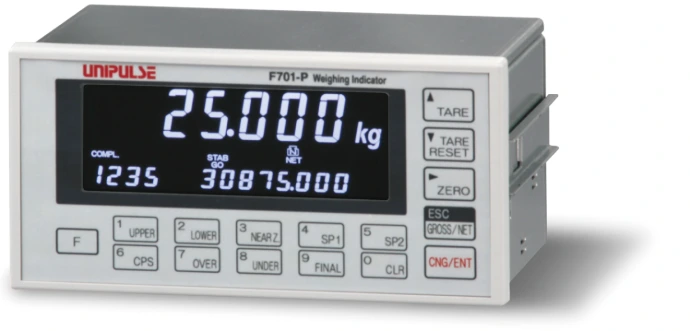

Standard Type weighing indicator 01 / 04

Standard Type

General-purpose weighing indicators for platform scales and everyday industrial weighing.

Models: F701-P, F741-C, F741R2

Request a Quote View on Unipulse.com →

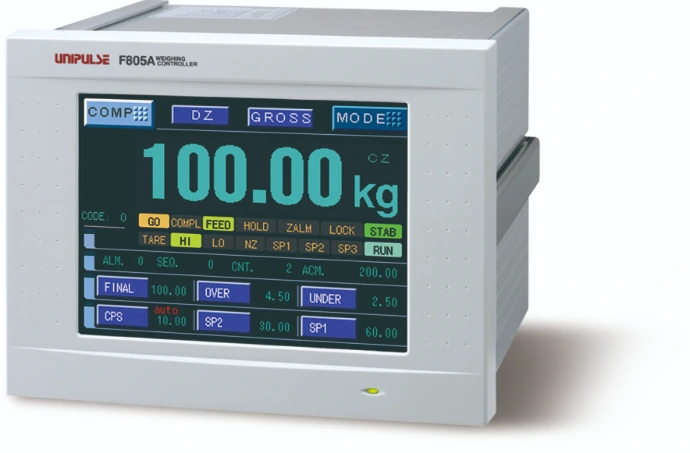

Control Function Type weighing indicator 02 / 04

Control Function Type

Weighing indicators with built-in control functions — batch formulas, constant feeding, belt scales, multi-draft, and check weighing — for automated processes.

Models: FC1000, F720B, F805AT, F805AT-CK, F805AT-FB, F805AT-CF, F805AT-BC, F805AT-MD, F600AT, F650-CK, F800, F701+, F701-C, F701, F160, F156

Request a Quote View on Unipulse.com →
Loadcell Interface for PLC weighing indicator 03 / 04

Loadcell Interface for PLC

DIN-rail mount weighing indicators with direct PLC network interfaces (CC-Link, EtherNet/IP, EtherCAT, PROFINET, RS-485, RS-232C).

Models: FC500-CCL, FC500-DAC, FC500-EIP, FC500-485, FC500-232, FC400-CCL, FC400-DAC, FC400-EIP, FC400-ECT, FC400-232, FC400-PRT, F159

Request a Quote View on Unipulse.com →

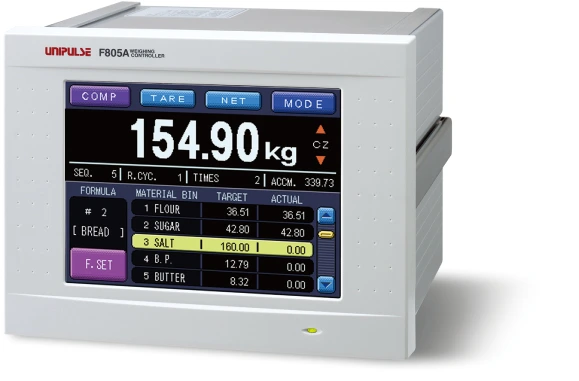

Application Series weighing controller 04 / 04

Application Series

Purpose-built controllers for checker scales, formula batching, constant feed weighers, belt scales, and multi-draft weighing.

Models: F805AT-CK, F805AT-FB, F805AT-CF, F805AT-BC, F805AT-MD

Request a Quote View on Unipulse.com →
Request a Quote
Applications

Where Unipulse Weighing Indicators Are Used

Industrial Weighing Systems / Batching and Formula Control / Check Weighing / Belt and Conveyor Scales / Multi-Draft Weighing
Frequently Asked Questions

Frequently Asked Questions About Unipulse Weighing Measurement

The Standard Type reads and displays weight for general-purpose scales. The Control Function Type adds automation for a specific process — batch formulas, constant feeding, belt scale control, multi-draft weighing, or check weighing.

These are DIN-rail mount indicators that convert the load cell signal directly into a PLC network protocol (CC-Link, EtherNet/IP, EtherCAT, PROFINET, RS-485, or RS-232C), for integration into an automated production line without a separate converter.

It covers purpose-built weighing controllers for checker scales, formula batching, constant weight feeding, belt scales, and multi-draft weighing — each configured for that specific process out of the box.

No, we do not perform calibration, diagnostics, or repairs ourselves. Tell us about your Unipulse weighing indicators already in operation, we will contact Unipulse directly.

Looking for the Technical Specifications?

We have the Weighing Measurement catalog with processing speed, interfaces, and technical data for each model.
