Unipulse Force Measurement

Numerical, waveform, portable, and PLC-networked force indicators to read, monitor, and judge the signal from your load cells in real time. Each unit is quoted individually for your application.

Catalog

4 Force Indicator Types

Choose the indicator type based on how you need to read, display, and network the force signal from your load cells.

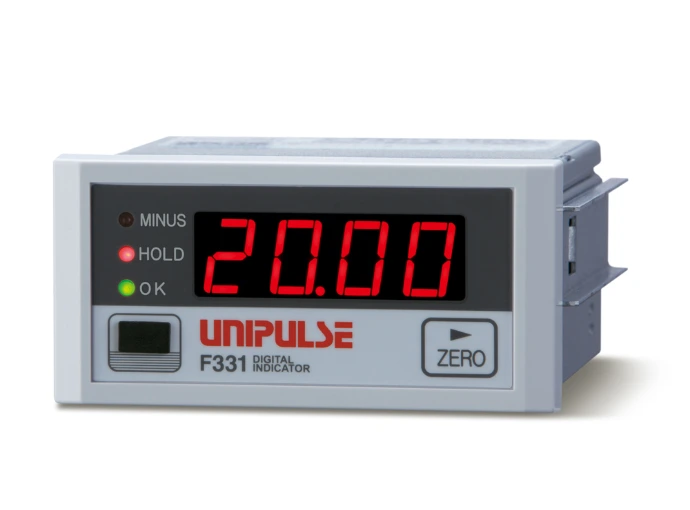

Numerical Display Type force indicator 01 / 04

Numerical Display Type

Digital force indicators with numeric display for real-time force readings, HI/LO limit comparison, and data logging.

Models: F331, F350, F325, F340A, F490A

Request a Quote View on Unipulse.com →

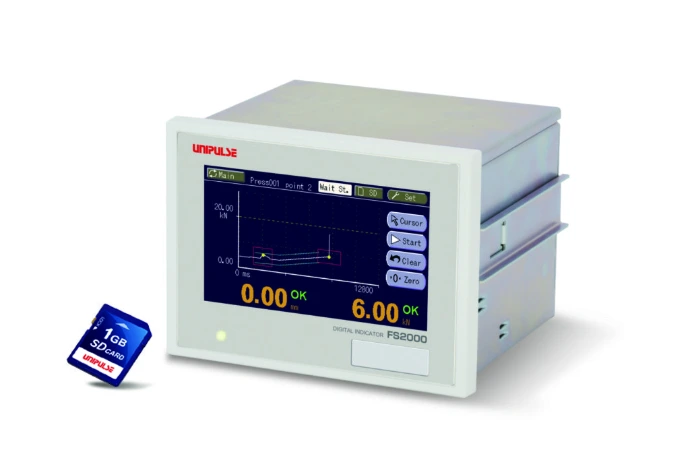

Waveform Display Type force indicator 02 / 04

Waveform Display Type

Graphic touch panel indicators with waveform display and comparison, for press force monitoring and multi-point judgment.

Models: PFAE, PFA, FS2000, F381A, F388A, F372A, F377A

Request a Quote View on Unipulse.com →
03 / 04

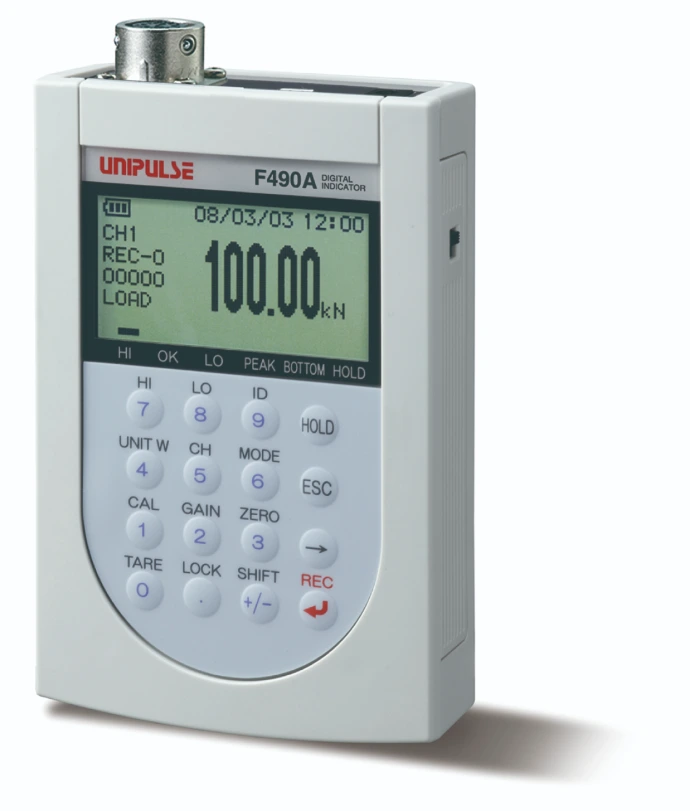

Portable Type

Lightweight, battery-capable indicator for field force measurement with CSV data logging.

Models: F490A

Request a Quote View on Unipulse.com →

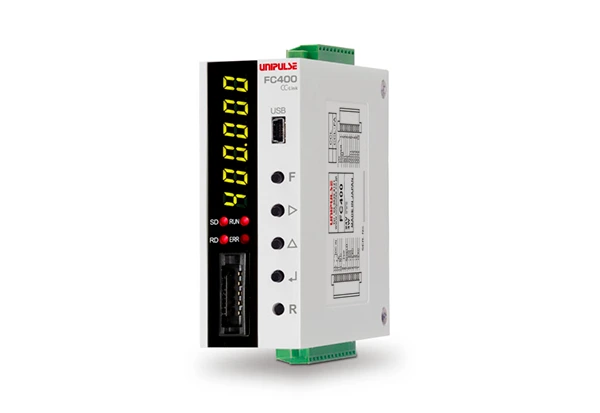

Loadcell Interface for PLC force indicator 04 / 04

Loadcell Interface for PLC

DIN-rail mount force indicators with direct PLC network interfaces (CC-Link, EtherNet/IP, EtherCAT, PROFINET, RS-232C).

Models: FC400-CCL-FA, FC400-DAC-FA, FC400-EIP-FA, FC400-ECT-FA, FC400-232-FA, FC400-PRT-FA, F130

Request a Quote View on Unipulse.com →
Request a Quote
Applications

Where Unipulse Force Indicators Are Used

Press Force Monitoring / Assembly Line Quality Control / Material Testing / Process Automation
Frequently Asked Questions

Frequently Asked Questions About Unipulse Force Measurement

A numerical display indicator shows a live reading (and peak/HI-LO comparison), while a waveform display indicator additionally records and compares the full force curve over time — useful for press force monitoring where the shape of the curve matters, not just the peak value.

These are DIN-rail mount indicators that convert the load cell signal directly into a PLC network protocol (CC-Link, EtherNet/IP, EtherCAT, PROFINET, or RS-232C), for integration into an automated production line without a separate converter.

No, we do not perform calibration, diagnostics, or repairs ourselves. Tell us about your Unipulse force indicators already in operation and we will contact Unipulse directly.

Yes. Unipulse force indicators are designed to work with the brand's load cells, sharing the same pulse (digital) circuit technology for a matched, reliable signal.

Looking for the Technical Specifications?

We have the Force Measurement catalog with processing speed, interfaces, and technical data for each model.

Request Catalog Request a Quote
